OPT & Examination Lights
OPT light

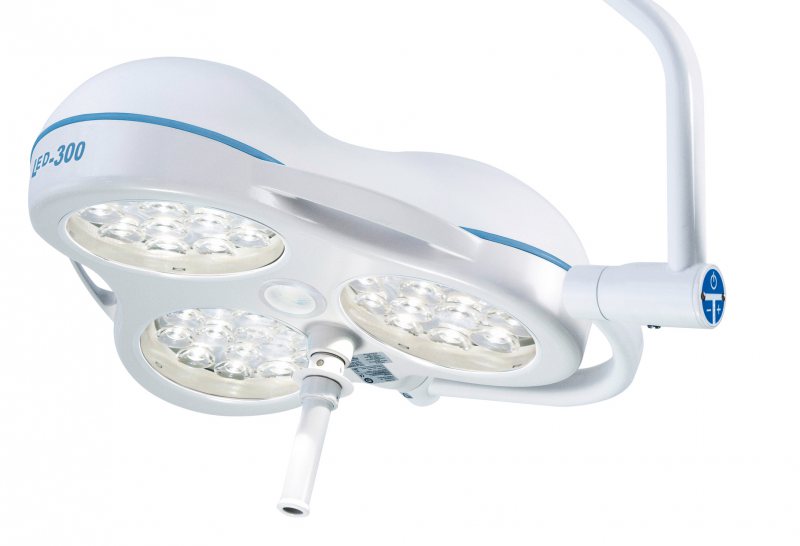

GSDMLED 300DF with reflector
Technical data:
- Central light intensity at a distance of 1 meter: 150.000 Lux
- Light field diameter d10: 140 mm
- Light field diameter d50: 75 mm
- Light intensity with one shadower: 36 %
- Light intensity with two shadowers: 52 %
- Light intensity on the ground of a normed tube: 100 %
- Light intensity on the ground of a normed tube with one shadower: 36 %
- Light intensity on the ground of a normed tube with two shadowers: 52 %
- Illumination depth 20 %: 1440 mm
- Illumination depth 60 %: 450 mm
- Colour rendering index Ra: 95
- Colour rendering index R9: 90
- Max. radiation in field in a distance of 1 meter: 541 W/m²
- Max. radiation in field in a distance of 0,95 meter: 551 W/m²
- Focusable light field size: 14-28 cm
- Colour temperature (Kelvin): 4500 K
- Temperature increase in head area: 0,5 °C
- Number of LED’s: 36
- Life span of LED’s: >40.000 h
- Light head diameter: 55 cm
- Working distance: 60-150 cm
- Height adjustment: 118 cm
- Power consumption: 58 W
- Operating voltage: DC 24 V – 30 V
- Current: 1,9 A
Mounting options:
- Ceiling suspended
- Wall mounted
- Mobile on four castors
