OPT & Examination Lights

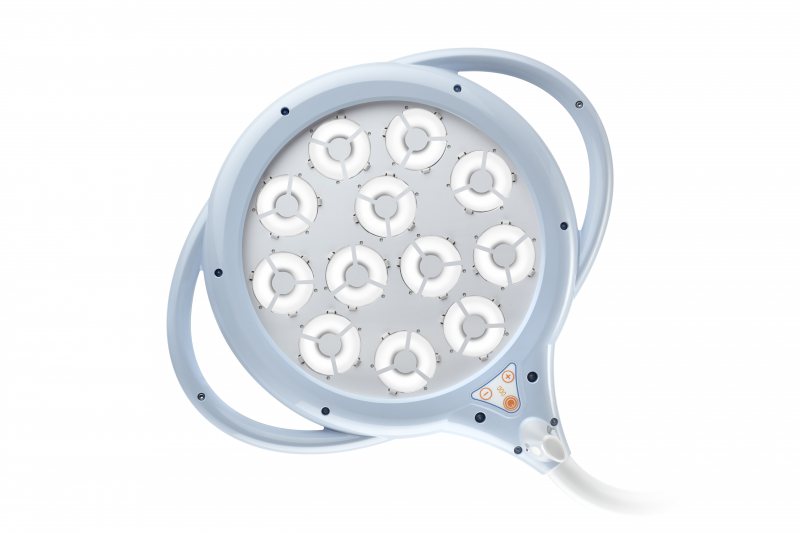

GSRIPENTALED 12

Technical data:

• Light intensity at 1 m distance (Ec): 50.000 Lux
• Colour temperature: 4.500 K
• Colour Rendering Index (CRI): Ra 96
• Light field diameter where the illuminance reaches 50% of Ec (d50): 70 mm
• Light field diameter where the illuminance reaches 10% of Ec (d10): 140 mm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 60% of Ec: 87 cm (62+25)
• Total radiated energy Ee where the illuminance reaches max level: 119 W/m2
• Ratio between radiated energy Ee and illuminance Ec: 2,38 mW/m2.lx
• Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
• R9: 92
• Power transformer a.c.: 100 ÷ 240 V
• Frequency: 50/60 Hz
• Electrical absorption: 40 VA
• Led no. : 12
• Average led life: 50.000 hours
• Control of the illuminance %: 20 ÷ 100

Mounting options:

• Ceiling suspended
• Wall mounted
• Mobile on four castors
