OPT & Examination Lights

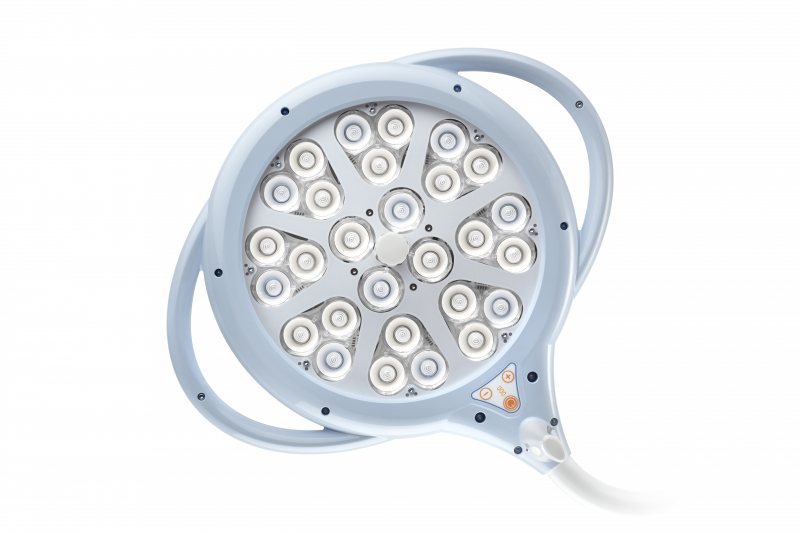

GSRIPENTALED 28

Technical data:

• Light intensity at 1 m distance (Ec): 80.000 (5.000K) / 50.000 (4.500K) Lux
• Colour temperature: 4.500 / 5.000 K
• Colour Rendering Index (CRI): Ra 92 (5.000K) / 96 (4.500K)
• Light field diameter where the illuminance reaches 50% of Ec (d50): 135 mm
• Light field diameter where the illuminance reaches 10% of Ec (d10): 270 mm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 60% of Ec: 58 cm (28+30)
• Total radiated energy Ee where the illuminance reaches max level: 220 W/m2
• Ratio between radiated energy Ee and illuminance Ec: 2,64 mW/m2.lx
• Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
• R9: 90 (5.000K) / 92 (4.500K)
• Power transformer a.c.: 100 ÷ 240 V
• Frequency: 50/60 Hz
• Electrical absorption: 81 VA
• Led no. : 28
• Average led life: 50.000 hours
• Control of the illuminance %: 20 ÷ 100

Mounting options:

• Ceiling suspended
• Wall mounted
• Mobile on four castors
