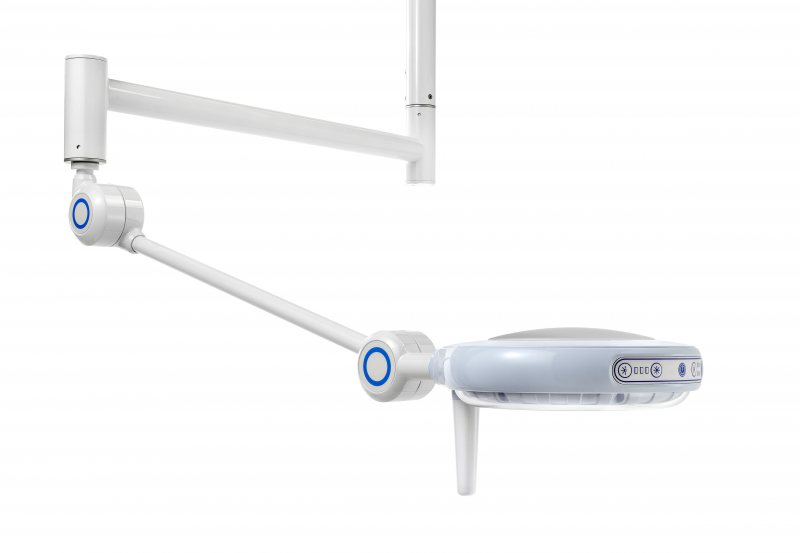

OPT & Examination Lights

GSRISATURNOLED

Technical data:

• Light intensity at 1m distance (Ec): 30.000 Lux
• Color temperature: 4.500 / 5.000 K
• Color rendering index (CRI): 96
• R9: ≥90
• No. of Leds: 9
• Light field diameter adjustable: 28 cm
• d10 light field diameter where illuminance reaches 10% of Ec: 250 mm
• d50 light field diameter where illuminance reaches 50% of Ec: 125 mm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 136 cm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 228 cm
• Control of the illuminance (%): 25-100 in 7 steps
• Total radiated energy Ee where the illuminance reaches max level: 105 W/m2
• Ratio between radiated energy Ee and illuminance Ec: 2,82 mW/m2.lx
• Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
• Average Led life: > 50.000 hours
• Electrical data Primary voltage: 80 - 240 V
• Secondary voltage: 24 V
• Frequency: 50 - 60 Hz
• Absorbed power: 35 VA

Mounting options:

• Ceiling suspended
• Wall mounted
• Mobile on five castors
