OPT light

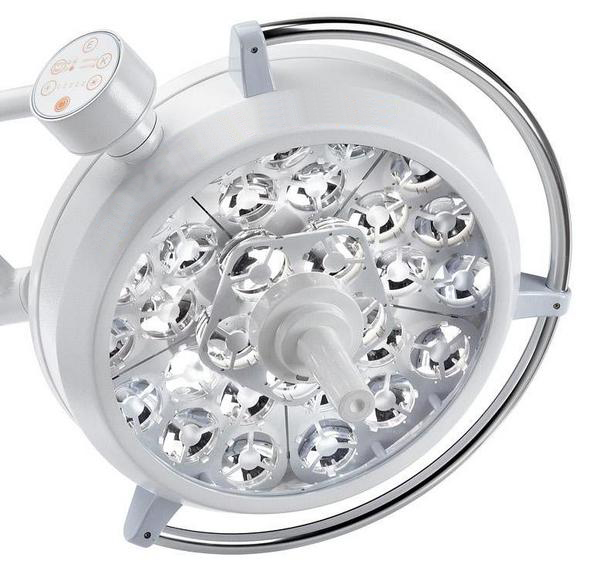

GSRIPENTALED 30E
Technical data:
Light intensity at 1m distance (Ec): 130.000 Lux
Color temperature: double selection: 4500 / 5000° K
Color rendering index (CRI): 96 Ra
R9: ≥ 90
No. of Leds: 30
Diameter and focus adjustment: Electronic - fixed
Light field diameter adjustable: 16 – 28 cm
d10 light field diameter where illuminance reaches 10% of Ec: 160 mm
d50 light field diameter where illuminance reaches 50% of Ec: 80 mm
Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 49 cm
Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 95 cm
Control of the illuminance (%): 25 - 100
Total radiated energy Ee where the illuminance reaches max level: 299 W/m2
Ratio between radiated energy Ee and illuminance Ec: 2,30 mW/m2.lx
Radiated UV energy with wavelength less than 400nm: 0,002 W/m2
Average Led life: > 50.000 hours
EndoLED light intensity min-max: 5.000 – 20.000 Lux
Primary alternating voltage (a.c.): 100 - 240 V
Secondary continue voltage (d.c): 24 V
Frequency: 50 - 60 Hz
Absorbed power: 50 VA
Mounting options:
Ceiling suspended
Wall mounted
Mobile on four castors
