OPT & Examination Lights

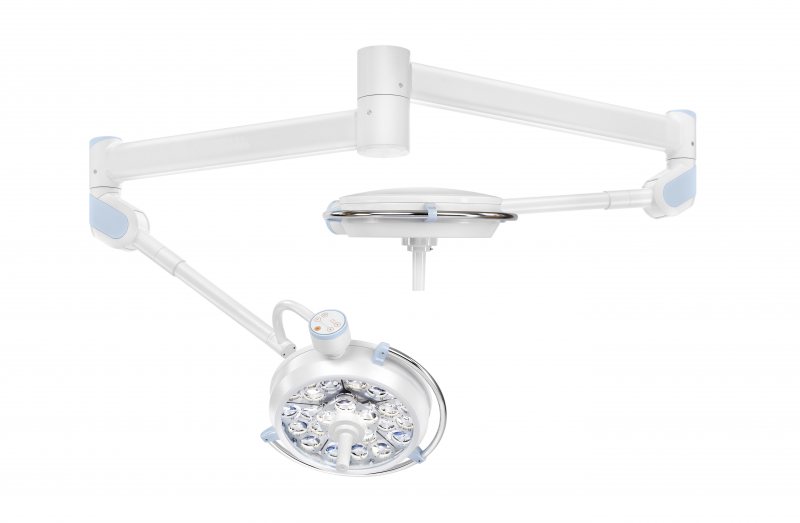

GSRIPENTALED 30N

Technical data:

• Light intensity at 1m distance (Ec): 130.000 Lux
• Color temperature: double selection: 4500 / 5000° K
• Color rendering index (CRI): 96 Ra
• R9: ≥ 90
• No. of Leds: 30
• Diameter and focus adjustment: Manual
• Light field diameter adjustable: 18 – 22 cm
• d10 light field diameter where illuminance reaches 10% of Ec (small ø): 180 mm (130 klx)
• d10 light field diameter where illuminance reaches 10% of Ec (big ø): 220 mm (85 klx)
• d50 light field diameter where illuminance reaches 50% of Ec (small ø): 90 mm (130 klx)
• d50 light field diameter where illuminance reaches 50% of Ec (big ø): 130 mm (85 klx)
• Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 55 cm
• Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 108 cm
• Control of the illuminance (%): 25 - 100
• Total radiated energy Ee where the illuminance reaches max level: 263 W/m2
• Ratio between radiated energy Ee and illuminance Ec: 2,7 mW/m2.lx
• Radiated UV energy with wavelength less than 400nm: 0,001 W/m2
• Average Led life: > 50.000 hours
• EndoLED light intensity min-max: 9.000 – 25.000 Lux
• Primary alternating voltage (a.c.): 100 - 240 V
• Secondary continue voltage (d.c): 24 V
• Frequency: 50 - 60 Hz
• Absorbed power: 70 VA

Mounting options:

• Ceiling suspended
• Wall mounted
• Mobile on four castors
