OPT & Examination Lights

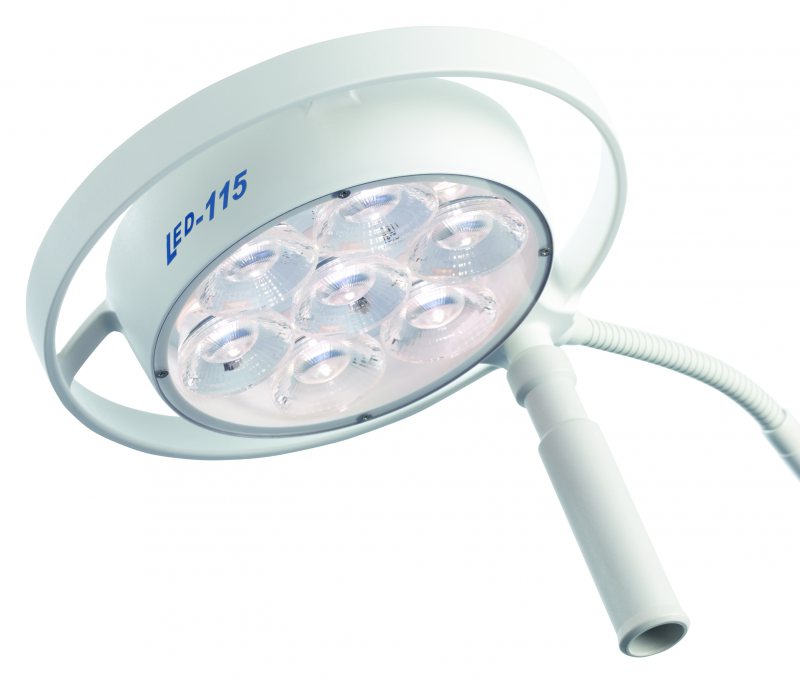

GSDMLED 115

Technical data:

• Central light intensity at a distance of 0,5 meter: 60.000 Lux
• Central light intensity at a distance of 1 meter: 14.000 Lux
• Light field diameter d10 at a distance of 0,5 meters: 103 mm
• Light field diameter d10 at a distance of 1 meter: 228 mm
• Light field diameter d50 at a distance of 0,5 meters: 60 mm
• Light field diameter d50 at a distance of 1 meter: 103 mm
• Light intensity with one shadower: 0 %
• Light intensity with two shadowers: 78 %
• Light intensity on the ground of a normed tube: 100%
• Light intensity on the ground of a normed tube with one shadower: 0 %
• Light intensity on the ground of a normed tube with two shadowers: 78 %
• Illumination depth 60 %: 1180 mm
• Colour rendering index Ra: 95
• Colour rendering index R9: 90
• Max. radiation in field in a distance of 1 meter: 51 W/m²
• Max. radiation in field in a distance of 0,30 meters: 330 W/m²
• Light field size 10 cm
• Colour temperature (Kelvin): 4000 K
• Temperature increase in head area: 0,5 °C
• Number of LED’s: 7
• Life span of LED’s: ≥ 40.000 h
• Light head diameter: 22 cm
• Power consumption: 10 W
• Operating voltage DC: 24 V DC
• Current: 0,42 A

Mounting options:

• With fixation clamp for supply rails
• With fixation on round and rectangular tubes
• With fixation plate
• Table mounted light with fixation clamp
• Wall mounted
• Mobile on five castors
