OPT & Examination Lights

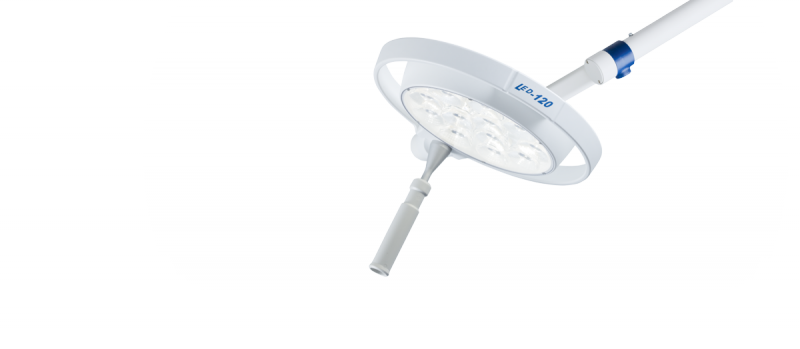

Compact examination light with LED-technology
GSDMLED 120
Technical data:
- Central light intensity at a distance of 1 meter: 35.000 Lux
- Light field diameter d10: 132 mm
- Light field diameter d50: 66 mm
- Light intensity with one shadower: 0 %
- Light intensity with two shadowers: 61 %
- Light intensity on the ground of a normed tube: 100 %
- Light intensity on the ground of a normed tube with one shadower: 0,02 %
- Light intensity on the ground of a normed tube with two shadowers: 61 %
- Illumination depth 20 %: 1750 mm
- Illumination depth 60 %: 840 mm
- Colour rendering index Ra: 95
- Colour rendering index R9: 90
- Max. radiation in field in a distance of 1 meter: 126 W/m²
- Max. radiation in field in a distance of 0,80 meters: 148 W/m²
- Focusable light field size: 17 cm (fixed focus)
- Colour temperature (Kelvin): 4300 K
- Temperature increase in head area: 0,5 °C
- Electronic light intensity control at the light head (standard): 50-100 %
- Number of LED’s: 12
- Life span of LED‘s: 40.000 h
- Working distance: 70-140 cm
- Diameter of the light head: 29 cm
- Height adjustment: 121 cm
- Power consumption: 18 W
- Operating voltage DC: 24 V DC
- Current: 0,75 A
Mounting options:
- Ceiling suspended
- Wall mounted
- Mobile on four castors
- Mobile on five castors
