OPT & Examination Lights

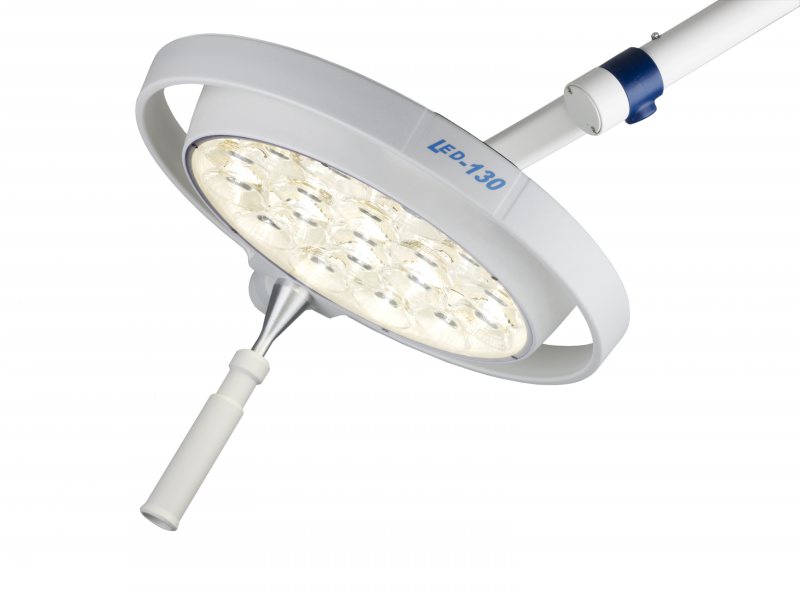

Compact examination light with LED-technology
GSDMLED 130PLUS
Technical data:
- Central light intensity at a distance of 1 meter: 100.000 Lux
- Light field diameter d10: 120 mm
- Light field diameter d50: 60 mm
- Light intensity with one shadower: 0 %
- Light intensity with two shadowers: 58 %
- Light intensity on the ground of a normed tube: 100%
- Light intensity on the ground of a normed tube with one shadower: 0 %
- Light intensity on the ground of a normed tube with two shadowers: 58 %
- Illumination depth 60 %: 660 mm
- Colour rendering index Ra: 95
- Colour rendering index R9: 90
- Max. radiation in field in a distance of 1 meter: 339 W/m²
- Max. radiation in field in a distance of 0.,97 meter: 357 W/m²
- Light field size 12 cm
- Colour temperature (Kelvin): 4300 K
- Electronic light intensity control at the light head: 50 - 100%
- Temperature increase in head area: 0,5 °C
- Number of LED’s: 19
- Life span of LED’s: ≥ 40.000 h
- Working distance: 70 -140 cm
- Light head diameter: 33 cm
- Height adjustment: 123 cm
- Power consumption: 28 W
- Operating voltage DC: 24 V DC
- Current: 1,2 A
Mounting options:
- Ceiling suspended
- Wall mounted
- Mobile on four castors
- Mobile on five castors
