OPT & Examination Lights

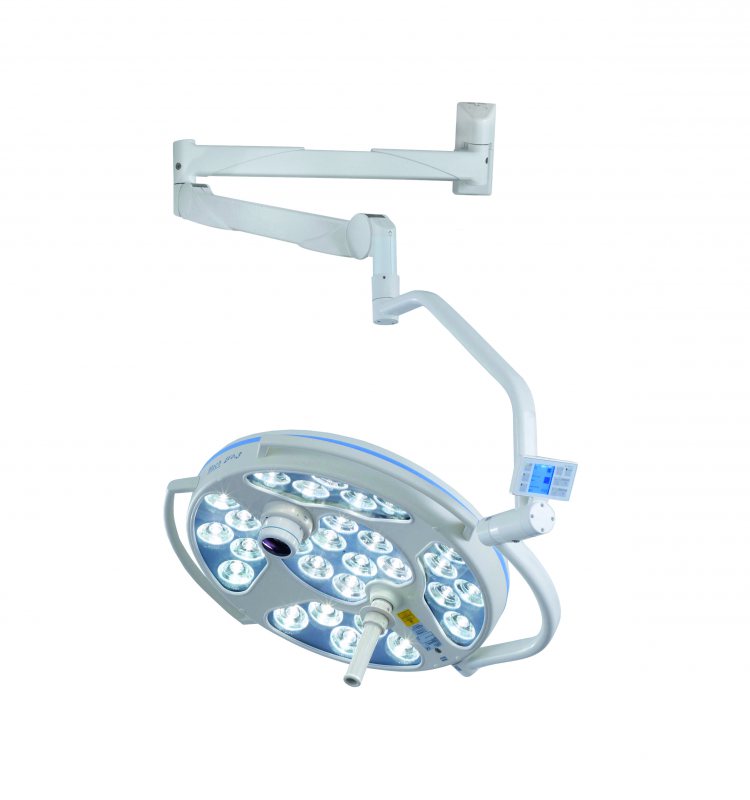

GSDMLED 3MC

Technical data:

• Central light intensity at a distance of 1 meter: 140.000 Lux
• Light field diameter d10: 170 mm
• Light field diameter d50: 100 mm
• Light intensity with one shadower: 61 %
• Light intensity with two shadowers: 49 %
• Light intensity on the ground of a normed tube: 100 %
• Light intensity on the ground of a normed tube with one shadower: 61 %
• Light intensity on the ground of a normed tube with two shadowers: 49 %
• Illumination depth 20 %: 1200 mm
• Illumination depth 60 %: 520 mm
• Colour rendering index Ra: 96
• Colour rendering index R9: 96
• Max. radiation in field in a distance of 1 meter: 442 W/m²
• Max. radiation in field in a distance of 0,80 meters: 626 W/m²
• Focusable light field size: 17-28 cm
• Colour temperature (Kelvin): 3750, 4000, 4250, 4500, 4750 K
• Temperature increase in head area: 0,5 °C
• Number of LED’s: 112
• Life span of LED’s: >40.000 h
• Light head diameter: 57 cm
• Working distance: 60-150 cm
• Height adjustment: 118 cm
• Power consumption: 30 W
• Operating voltage: DC 24 V – 30 V
• Current: 5,0 A

Mounting options:

• Ceiling suspended
• Mobile on four castors
