OPT & Examination Lights
OPT light

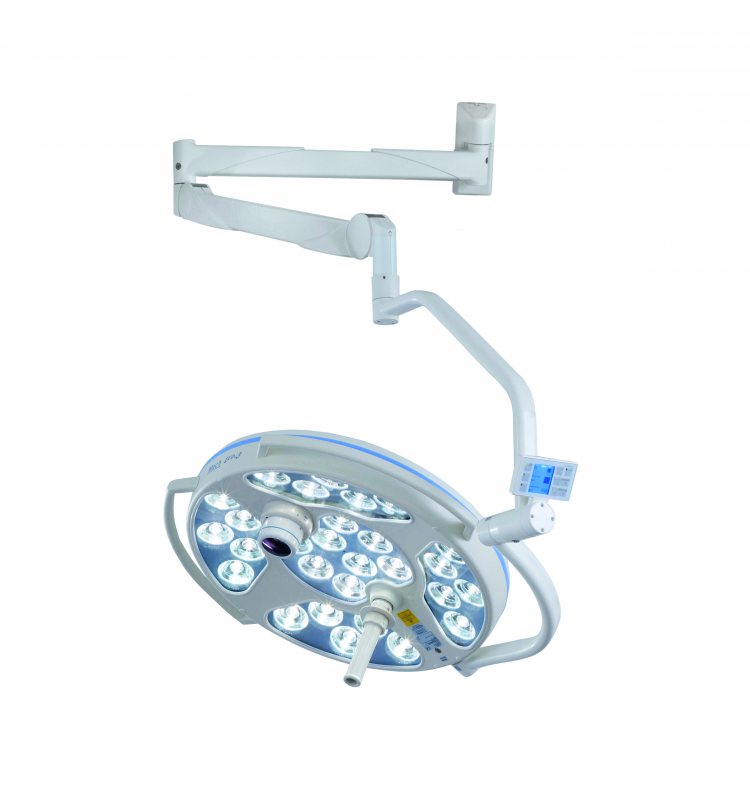

GSDMLED 3MC SMART
Technical data:
- Central light intensity at a distance of 1 meter: 140.000 Lux
- Light field diameter d10: 170 mm
- Light field diameter d50: 100 mm
- Light intensity with one shadower: 61 %
- Light intensity with two shadowers: 49 %
- Light intensity on the ground of a normed tube: 100 %
- Light intensity on the ground of a normed tube with one shadower: 61 %
- Light intensity on the ground of a normed tube with two shadowers: 49 %
- Illumination depth 20 %: 1200 mm
- Illumination depth 60 %: 530 mm
- Colour rendering index Ra: 95
- Colour rendering index R9: 90
- Max. radiation in field in a distance of 1 meter: 499 W/m²
- Max. radiation in field in a distance of 0,89 meters: 537 W/m²
- Focusable light field size: 17-28 cm
- Colour temperature (Kelvin): 3750, 4000, 4250, 4500, 4750 K
- Temperature increase in head area: 0,5 °C
- Number of LED’s: 56
- Life span of LED’s: >40.000 h
- Light head diameter: 57 cm
- Working distance: 60-150 cm
- Height adjustment: 118 cm
- Power consumption: 120 W
- Operating voltage: DC 24 V – 30 V
- Current: 5,0 A
Mounting options:
- Ceiling suspended
- Mobile on four castors
