OPT & Examination Lights

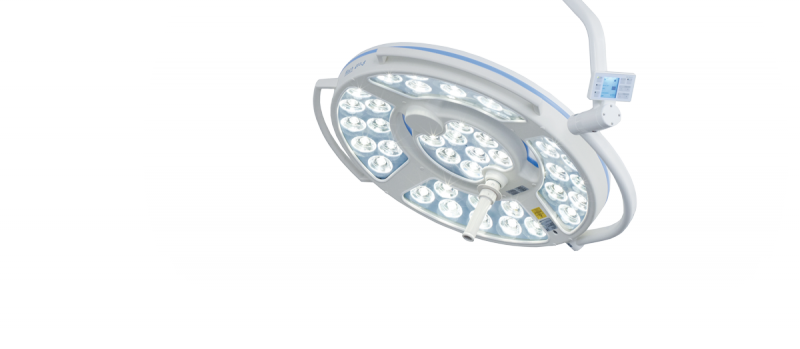

GSDMLED 5SC

Technical data:

• Central light intensity at a distance of 1 meter: 160.000 Lux
• Light field diameter d10: 200 mm
• Light field diameter d50: 100 mm
• Light intensity with one shadower: 76 %
• Light intensity with two shadowers: 53 %
• Light intensity on the ground of a normed tube: 90 %
• Light intensity on the ground of a normed tube with one shadower: 64 %
• Light intensity on the ground of a normed tube with two shadowers: 46 %
• Illumination depth 20 %: 1500 mm
• Illumination depth 60 %: 390 mm
• Colour rendering index Ra: 95
• Colour rendering index R9: 94
• Max. radiation in field in a distance of 1 meter: 567 W/m²
• Max. radiation in field in a distance of 0,80 meters: 631 W/m²
• Focusable light field size: 20-32 cm
• Colour temperature (Kelvin): 4500 K
• Temperature increase in head area: 0,5 °C
• Number of LED’s: 40
• Life span of LED’s: 50.000 h
• Light head diameter: 72 cm
• Working distance: 60-150 cm
• Height adjustment: 118 cm
• Power consumption: 65 W
• Operating voltage: DC 24 V – 30 V
• Current: 2,5 A

Mounting options:

• Ceiling suspended
