OPT & Examination Lights
OPT light

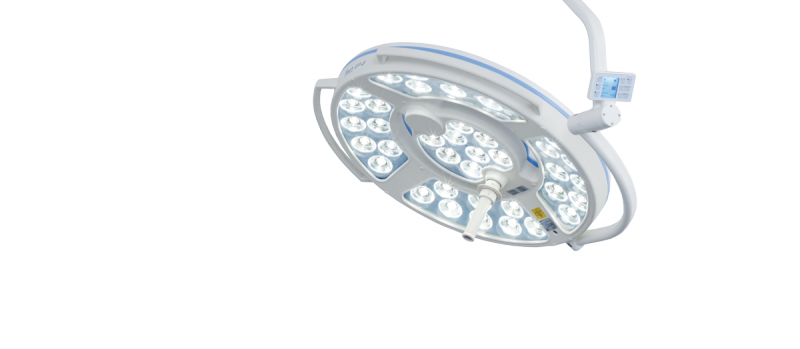

GSDMLED 5MC SMART
Technical data:
- Central light intensity at a distance of 1 meter: 160.000 Lux
- Light field diameter d10: 200 mm
- Light field diameter d50: 100 mm
- Light intensity with one shadower: 77 %
- Light intensity with two shadowers: 54 %
- Light intensity on the ground of a normed tube: 90 %
- Light intensity on the ground of a normed tube with one shadower: 64 %
- Light intensity on the ground of a normed tube with two shadowers: 45 %
- Illumination depth 20 %: 1500 mm
- Illumination depth 60 %: 400 mm
- Colour rendering index Ra: 95
- Colour rendering index R9: 90
- Max. radiation in field in a distance of 1 meter: 559 W/m²
- Max. radiation in field in a distance of 0,96 meters: 586 W/m²
- Focusable light field size: 20-32 cm
- Colour temperature (Kelvin): 3750, 4000, 4250, 4500, 4750 K
- Temperature increase in head area: 0,5 °C
- Number of LED’s: 80
- Life span of LED’s: >40.000 h
- Light head diameter: 72 cm
- Working distance: 60-150 cm
- Height adjustment: 118 cm
- Power consumption: 160 W
- Operating voltage: DC 24 V – 30 V
- Current: 6,6 A
Mounting options:
- Ceiling suspended
