OPT & Examination Lights

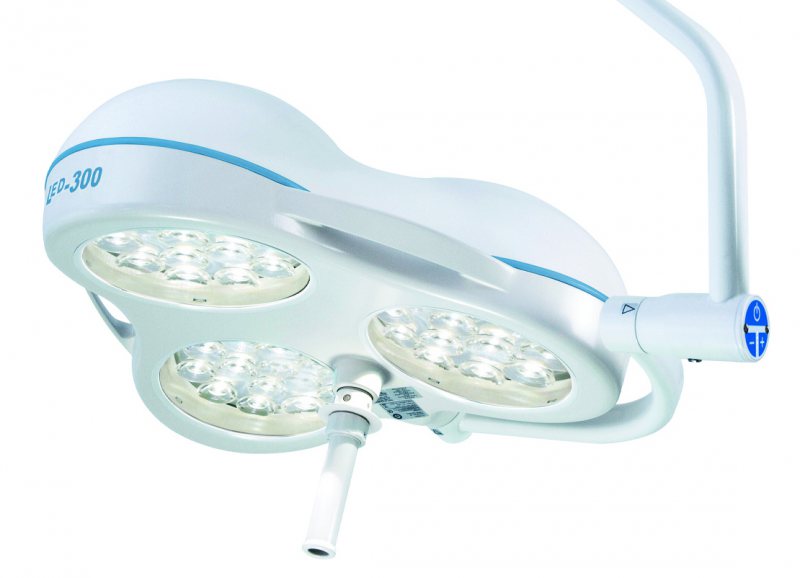

GSDMLED 300DF

Technical data:

• Central light intensity at a distance of 1 meter: 130.000 Lux
• Light field diameter d10: 140 mm
• Light field diameter d50: 70 mm
• Light intensity with one shadower: 44 %
• Light intensity with two shadowers: 45 %
• Light intensity on the ground of a normed tube: 100 %
• Light intensity on the ground of a normed tube with one shadower: 44 %
• Light intensity on the ground of a normed tube with two shadowers: 45 %
• Illumination depth 20 %: 740 mm
• Illumination depth 60 %: 370 mm
• Colour rendering index Ra: 95
• Colour rendering index R9: 90
• Max. radiation in field in a distance of 1 meter: 464 W/m²
• Focusable light field size: 14-28 cm
• Colour temperature (Kelvin): 4500 K
• Temperature increase in head area: 0,5 °C
• Number of LED’s: 36
• Life span of LED’s: >40.000 h
• Light head diameter: 55 cm
• Working distance: 60-150 cm
• Height adjustment: 118 cm
• Power consumption: 58 W
• Operating voltage: DC 24 V – 30 V
• Current: 1,9 A

Mounting options:

• Ceiling suspended
• Wall mounted
• Mobile on four castors
