Oxygen Therapy

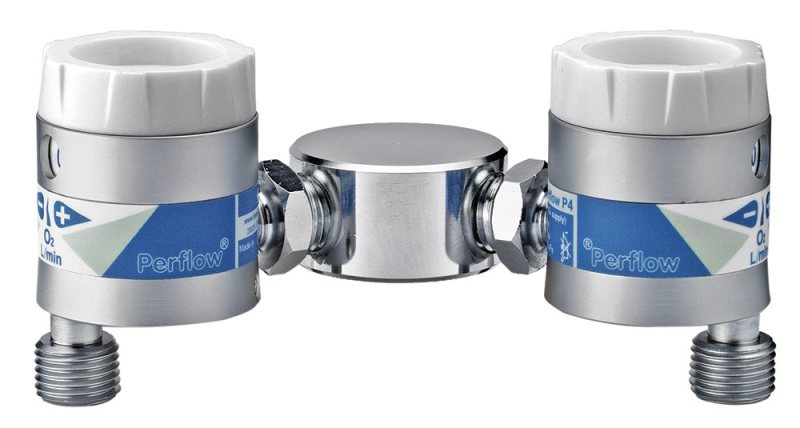

High precision flowmeters with calibrated orifices, a long diameter and great visibility. Control knob with click style positions, makes it more comfortable to use and safer against accidental flow changes. Aluminum body, polycarbonate dial, DISS outlet in chromium-plated brass, rest in stainless steel, NBR, silicone and polyamide.

Require fixed and stable input pressure.

Technical data:

• Inlet: Whitworth GAS 1/8”
• Outlet: DISS O2 9/16” - 18 UNF
• Fittings: BS, NF, DIN and SS. Other fittings available on request

GSHEP4--> 4bar

GSHEP5--> 50psi

Gases: Oxygen, Air

Flow settings*:

Oxygen: 0-1L/min, 0-5L/min, 0-15L/min**, 0-50L/min**

Air: 0-15L/min**, 0-50L/min**

*Flows calibrated at STP conditions (23oC, 101.3 kPa)
**Flowmeter 0-50L/min is indicated for CPAP
