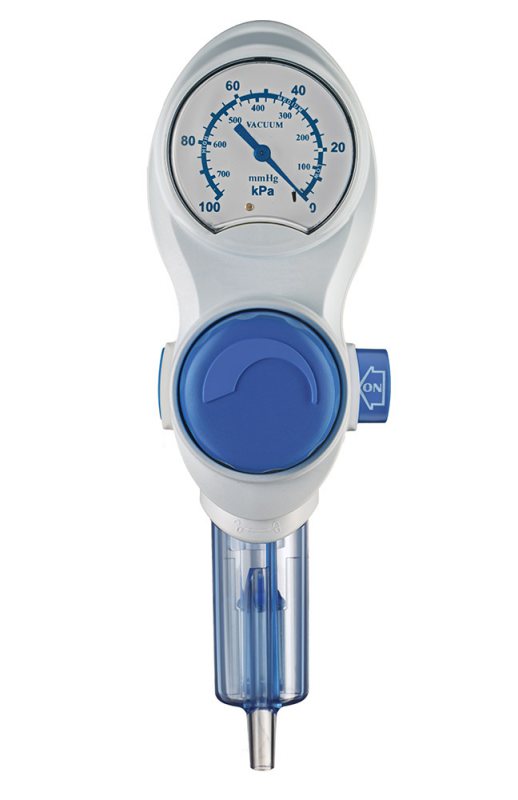

Vacuum regulator-high vacuum
High vacuum regulator with a precision-control mechanism to ensure a high-stability and accuracy. Comes with an ON/OFF switch for quick opening and closing. Water trap made of polycarbonate (SafetyTrap PC) with overflow safety system and high efficency particle filter. Materials: body in ABS + PC, vacuum gauge cover in PC, O-rings in NBR and silicone, pneumatic mechanism in POM and TPE, inlet thread female WGAS ¼” in chromed-plated brass. Options: - Hydrophobic antibacterial and antiviral filter (Bacterial Filter) O.D. 15 mm / 9 mm. - Diss connector. High flow suction regulator. High stability and accuracy.
Technical data:
- Materials: body in ABS-PC, vacuum gauge cover in PC, O-rings in NBR and silicone, pneumatic mechanism in POM, inlet thread connection in chromed plated brass.
- Fast ON/OFF switch.
- Water trap (made in polycarbonate with safety valve and particles filter) or hydrophobic bacterial and virus filter.
- Range: 0-100 kPa – 0-750 mmHg
- Precision: + 5%
- Flow: 90 L/min
- Dimensions: 240 x 86 x 86 mm
- Weight : 310 gr
Options:
- HV: basic unit with fitting, water trap, security valve and particle filter.
- HV PC1 Diss: with Diss adapter, particle filter and suction jar PC1 Diss directly fitted to the vacuum regulator
- HV PC2 : with 1,7 L suction jar and wall support.
- HV PC4: with 4 L suction jar and wall support.
- HVR: with rail coupling system
- HVR PC1 Diss: with rail coupling system and 2 L suction jar.
- HVR PC2 Diss: with rail coupling system and 1,7 L suction jar.
- Mobile on castors base
