Suction Devices

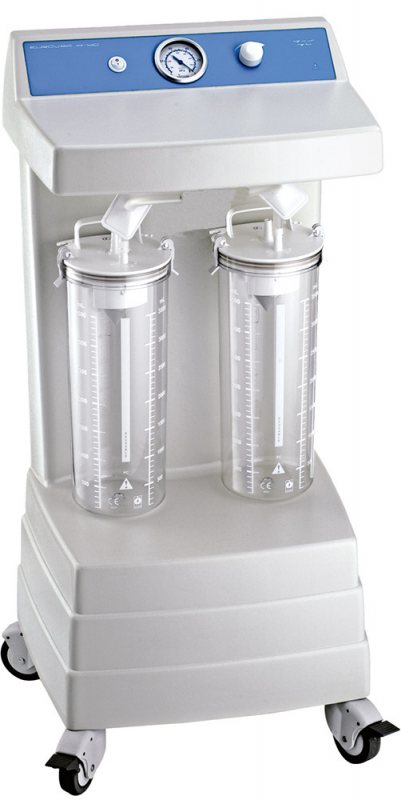

High vacuum electric suction unit, designed mainly for surgical use.

Technical data:

• Manufactured in grey white ABS high-resistance material (RAL 9002)
• provided with 4 Ø80mm wheels (1 of them antistatic, 2 of them with brakes).
• Long-life piston type, oil free, non-maintenance required Suction Pump.
• 1 or 2 polycarbonate collection jars (4 litres – scale up to 3500ml), with safety valve to prevent overfilling.
• Collection jar support according to EN 12218:1998.
• Hydrophobic PTFE bacteria filter, guaranteeing 99,95% particle retention and 99,99% bacterial challenge efficiency.
• On/Off Switch.
• Precise, continuous suction pressure-regulating Knob.
• High Vacuum Gauge (0-100kPa / 0-760 mmHg) using a high-visibility display (Ø67mm).
• 3m PVC suction tube (Ø8mm inside – Ø13 mm outside).
• 3m electric cable housing.
• Maximum pump flow: 40 L/min
• Maximum vacuum: 86 kPa - 866 mbar - 650 mmHg
• Noise level: 43.5-46.5 dB (AS)/1 m
• Power: 250 W
• Intensity: 1,7 A
• Voltage: 200 – 240 Vac (50-60 Hz) * 100 - 120 Vac available
• Dimensions: 960 x 430 x 340 mm
• Weight: 23,4 kg
• Product life: 10. 000 h. (suction pump)
• Storage temperature: -40ºC up to 70ºC -104ºF up to 158ºF
• Operating temperature: 7ºC up to 40ºC 44ºF up to 104ºF
• Quality requirements: ISO 10079-1:1999 93/42/CEE. Class IIa ISO IEC 60601-1:2006: Class I, Type BF, IPX1
