Alarm Systems for Medical Gas Panels

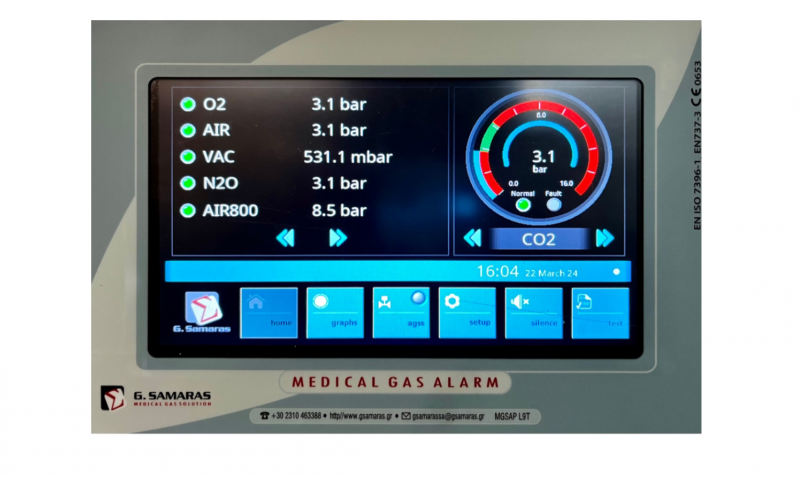

The local monitoring and alarm system, MGSAP L9 touch, provides the clinical emergency alarms (clinical emergency alarms) in compliance with EN 7396-1, HTM 02-01 and EN 737-3 and consists of an electronic board that continuously monitors the pressure of medical gases by means of pressure transmitters and/or pressure switches.

Features:

- Microprocessor 32bit based design providing powerful functionality 2Mb memory

- Built in LCD screen 3'' (80x100) for displaying all measurements

- Power supply of 230V 50/60 Hz or 24V DC

- Audible signal for High/Low alarm condition (optional pre-High/pre-Low)

- Up to 12 Analog Inputs, 4-20 mA range, 12 Bit resolution

- Up to 20 independent Digital Inputs (pressure switches and dry contacts)

- Alarm/event report and log file (up to 100 records)

- Built in RJ45 port for Ethernet connection (1 port, 10/100 Base-T) for web interface (as standard)

- MODBUS TCP/IP supported for connection to BMS systems (as standard)

- Bigger screen than L9 provided (5'', 7'', 9'')
